Jetaire Series Direct-Drive High Velocity Fans

Ships Fully Assembled & Run-Tested We value your time. Every is built, balanced, and run-tested at our Arkansas plant before shipping. This ensures that when you open the box, you have a working unit ready for installation, not a box of parts and a confusing manual.

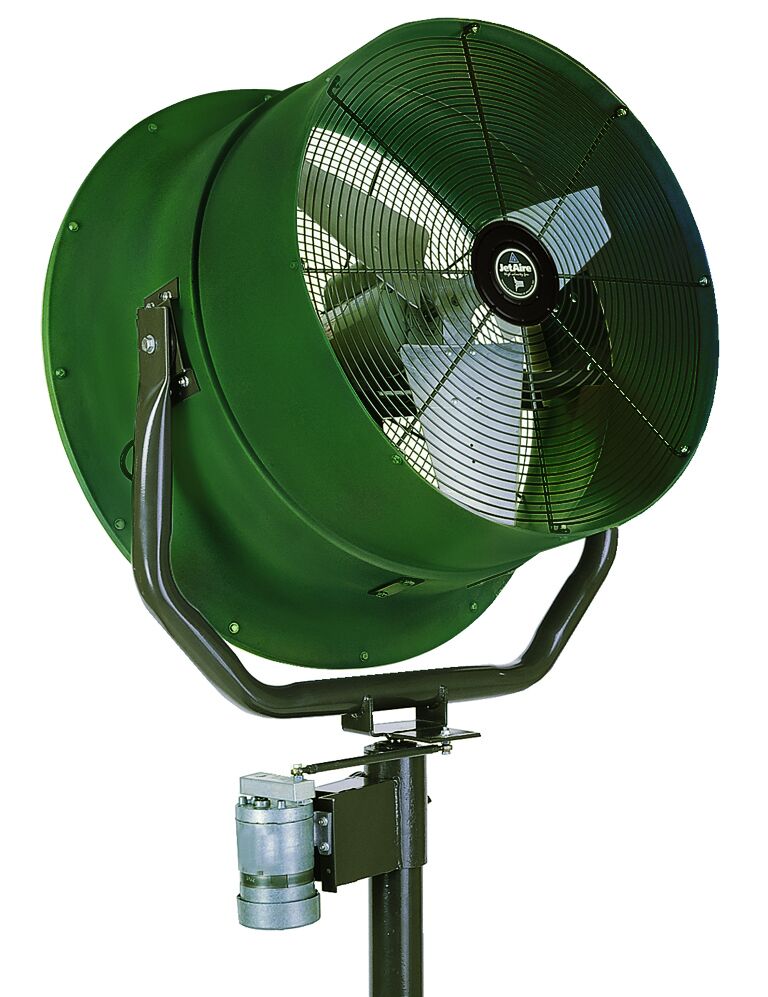

360° Yoke Mount for Precision Airflow Every Jetaire head is mounted on a heavy-duty steel yoke that allows for full 360° rotation. Whether you need to point the fan straight down to dry a golf green, angle it upwards to reduce ceiling condensation, or aim it directly at a workstation, the design offers total flexibility.

Wide-Coverage Oscillation For areas that require broader coverage than a single stationary stream, Jetaire models are available in oscillating models. This mechanism sweeps the fan head side-to-side, allowing one unit to cover a much larger floor area, ideal for wide warehouse aisles, large assembly zones or golf course greens.

Low-Maintenance Direct Drive The 24″ and 30″ models utilize a direct-drive motor, eliminating the need for belt replacements or tension adjustments. This design is ideal for critical applications, like food processing or greens drying, where reliability is paramount.

Powerful Long-Distance Airflow Engineered for performance, the Jetaire design channels air into a tight column that travels over 100 feet. This makes it ideal for projecting air across large production floors or deep into trailer trucks at loading docks.

Modular “Head-First” Versatility These units are sold as fan heads, giving you the freedom to pair them with the exact mounting solution you need. Choose from pedestal bases, wall brackets, column mounts, or ceiling mounts or permanent pole mount.

Directional & Oscillating Options Every Jetaire head is tiltable, allowing you to direct airflow exactly where it is needed. For wider coverage, optional oscillating models (available in 115V, 230V, and 460V) sweep the air back and forth, covering a larger footprint with a single fan.

Rugged Industrial Construction Equipped with Totally Enclosed Air Over (TEAO) motors, the HV Series is built to withstand dust, moisture, and debris often found in heavy industry and agricultural settings.

Sizes & Performance

• Blade Diameters: 24″ and 30″.

• Airflow Range: 5,600 CFM (1/2 HP) to 10,600 CFM (1 HP).

• Throw Distance: 100+ feet.

Motor Specifications

• Drive Type: Direct Drive.

• Motor Type: Totally Enclosed Air Over (TEAO).

• Horsepower: 1/2 HP or 1 HP.

• Voltage Options:

  • Single-Phase: 115V, 230V.

  • Three-Phase: 230V, 460V.

Mounting Options (Sold Separately)

• Pedestal Base (PB): For portable floor use.

• Vertical Mounting Bracket (VMB): For ceiling or beam attachment (Safety cable included).

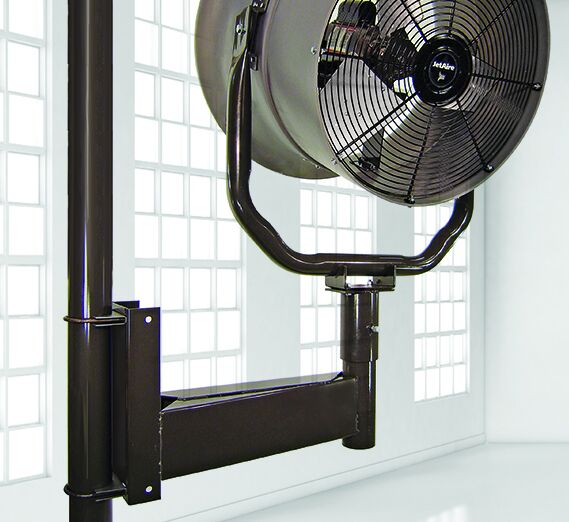

• Horizontal Mounting Bracket (HMB): For columns or walls.

• Pole Mounts: 6′ or 10′ poles for permanent concrete installation.

The Jetaire Series is a versatile solution for facilities that require powerful spot cooling, condensation control, or air circulation across long distances.

• Golf Course Management: Essential for greens drying and ventilation. Turf managers use the Jetaire’s 360° tilt to aim airflow directly at sensitive greens to remove dew and stagnant air, preventing fungal disease and heat stress.
• Poultry & Food Processing Plants: Critical for sanitation and condensation control. By angling the fans toward ceilings in cold processing rooms or washdown areas, facilities prevent moisture from dripping onto food products.
• Steel Mills & Foundries: Provides high-velocity heat relief for workers stationed near furnaces or molten metal, cutting through the ambient heat to offer effective spot cooling.
• Loading Docks: Improves safety and comfort by flushing hot, stagnant air and exhaust fumes out of semi-trailers during loading and unloading operations.
• Greenhouses: Circulates air over long planting rows to eliminate micro-climates, reduce moisture condensation on leaves, and strengthen plant stems.
• Textile Mills: Keeps air moving in lint-heavy environments to improve worker comfort and assist in filtration efficiency.

“Ready-to-Run” – No Assembly Kits Required Time is money on a job site. While many competitors ship high-velocity fans as “kits”—forcing your crew to bolt motors to frames, mount blades, and assemble guards in the field—the Jetaire Series respects your schedule. Every fan head and yoke assembly is fully assembled, balanced, and run-tested at our Arkansas factory. When it arrives, you simply mount it and wire it. We handle the quality control so you don’t have to build the product you just bought.

Zero-Maintenance Direct-Drive Reliability In critical applications—whether you are drying a bentgrass green to prevent fungus or cooling dairy cattle to maintain milk yield—a broken belt is a liability you cannot afford. The Jetaire Series utilizes a robust direct-drive design, coupling the propeller directly to the motor shaft. This eliminates belts, pulleys, and tensioners entirely, ensuring that your fan runs shift after shift without slippage, squealing, or unexpected downtime.

Precision 360° Directional Control Standard box fans blow air in one direction: forward. The Jetaire is different. Mounted on a heavy-duty locking yoke, the fan head can rotate 360 degrees.

• For Golf Superintendents: Point it straight down to syringe and dry specific spots on a green.
• For Food Processors: Angle it upwards to sweep ceilings and prevent condensation from dripping onto production lines.
• For Plant Managers: Lock it in place to blast cool air directly into a hot zone, or pick an oscillating model to sweep a large loading dock.

A Modular “One-Head, Any-Mount” System The Jetaire system allows you to standardize your facility on a single fan model (e.g., the 30″ HV3015) while adapting how it is deployed. You can mount the same fan head on a Pedestal Base for mobile floor cooling today, and move it to a Vertical Ceiling Bracket or Column Mount tomorrow. This modularity simplifies your spare parts inventory and gives you the flexibility to adapt to changing floor plans.

Made in the USA with Domestic & Foreign Components We build the Jetaire Series to last, using heavy-gauge housings and totally enclosed motors designed for harsh environments. Fabricated and assembled in our Arkansas facility, these fans offer superior build quality and faster availability than imported alternatives. When you need technical support or replacement parts, you are dealing directly with a US manufacturer backed by over 70 years of ventilation expertise.
