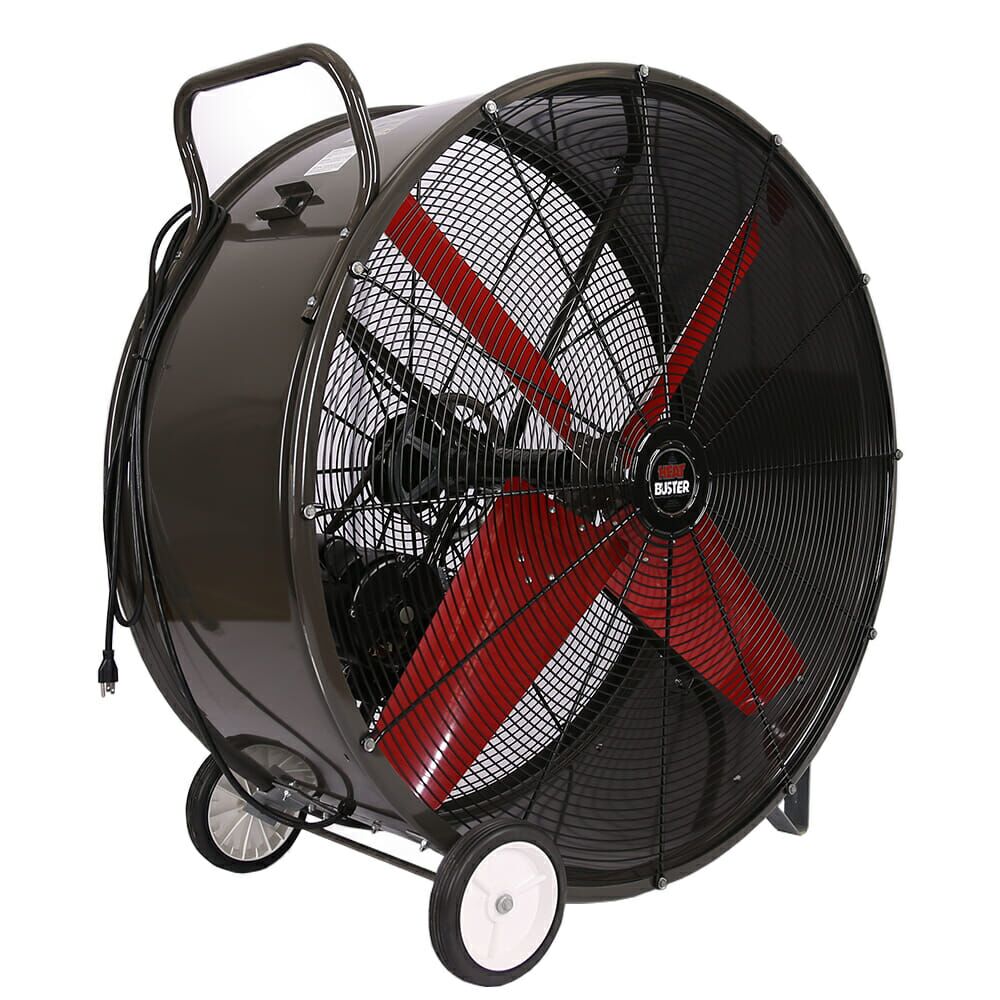

TPC Series – HeatBuster Heavy-Duty Belt-Driven Portable Barrel Fans

• High-volume airflow – up to 30,100 CFM
• Wide-body barrel design – increased structural rigidity and durability
• Full-service belt-drive construction – built for long-term maintainability
• Automatic belt tensioner (standard on ½ HP and ¾ HP models) – maintains proper belt alignment and reduces routine adjustment
• Horsepower options from ½ HP to 1½ HP
• Deep-pitch blades – maximize air delivery
• Rubber isolated bearings – reduce vibration transfer and protect structural components

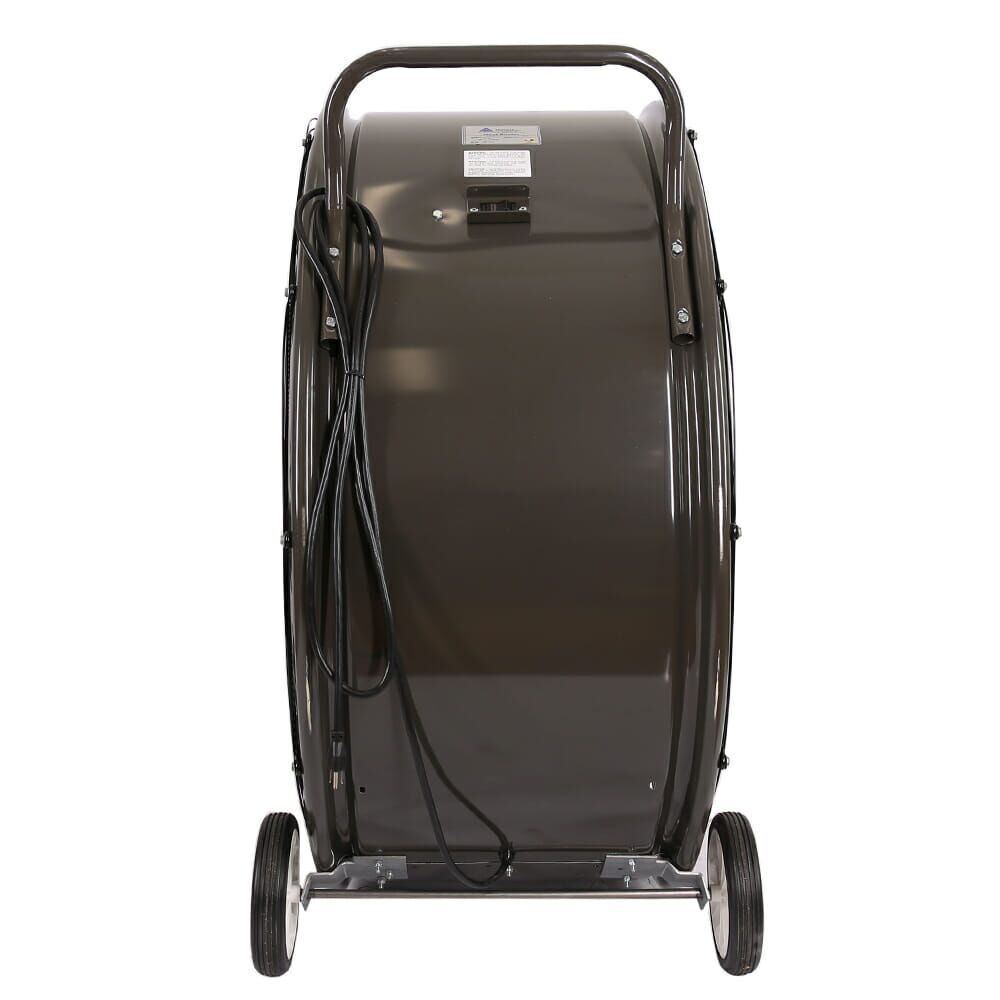

• Heavy-duty handle configuration – full-width easy-grip handle on most models; garage-style handle on select T-models
• Large no-flat wheels – durable transport over concrete, gravel, and jobsite surfaces
• Heavy-duty painted-steel barrel – engineered for demanding environments
• OSHA spiral-wound guards – safety and durability combined
• Factory-stocked replacement parts – motors, blades, guards, wheels, and components ship quickly

36″ Models

• TPC3613-T – ½ HP – 12,100 CFM

42″ Models

• TPC4213-T – ½ HP – 14,445 CFM
• TPC4214 – ¾ HP – 15,850 CFM
• TPC4215 – 1 HP – 16,990 CFM

48″ Models

• TPC4815 – 1 HP – 19,460 CFM

60″ Models

• TPC6016 – 1½ HP – 30,100 CFM

Motor & drive

• Belt-driven
• Open drip proof (ODP) motor standard
• Totally enclosed motor available on select T-models
• Automatic belt tensioner standard on ½ HP and ¾ HP models
• 115V single-phase (model dependent)
• Higher voltage and phase options available (model dependent) – Please consult factory on availability.
• RPM: 370–505 depending on model
• Amps: 7.6–14.0 depending on horsepower

*T-models (3613-T, 4213-T) include totally enclosed motors and garage-style handle.

• Heavy industrial facilities
• Manufacturing plants
• Large warehouses and distribution centers
• Agricultural and grain handling environments
• Industrial maintenance operations
• Applications requiring hazardous location compliance

Select TPC Series HeatBuster portable barrel fans are available with hazardous location–rated motor configurations for use in classified environments.

These models are supplied with motors rated for:

• Class I, Division 1, Group D
• Class II, Groups F & G

Hazardous location configurations include:

• Single-speed hazardous location–rated motor

• Stationary motor mount

• Aluminum blade

• No wiring or switch

• Made to order and non-returnable

The hazardous location rating applies to the motor. System suitability for specific classified environments should be reviewed by the specifying engineer or authority having jurisdiction.

Motor type, phase, and horsepower availability vary by model. Contact Triangle Engineering for specific hazardous location configuration details and lead times.

HeatBuster TPC fans are engineered for customers who require maximum durability, higher horsepower capability, and long-term serviceability in a portable format. The wide-body barrel increases structural strength, while vibration-isolated bearings and heavy-duty components support extended operation in demanding environments.

With sizes up to 60″ and airflow exceeding 30,000 CFM, HeatBuster provides industrial-scale spot cooling and air circulation where it is needed most.

Every unit ships fully assembled and performance tested. Fully supported with factory-stocked replacement parts, HeatBuster fans are designed to be maintained, not replaced.

Built in the USA with a blend of domestic and foreign components, the TPC Series reflects Triangle Engineering’s commitment to industrial-grade airflow solutions.
