1/2 HP 2 Speed Motor

QUALITYPARTS.
SINCE 1948.

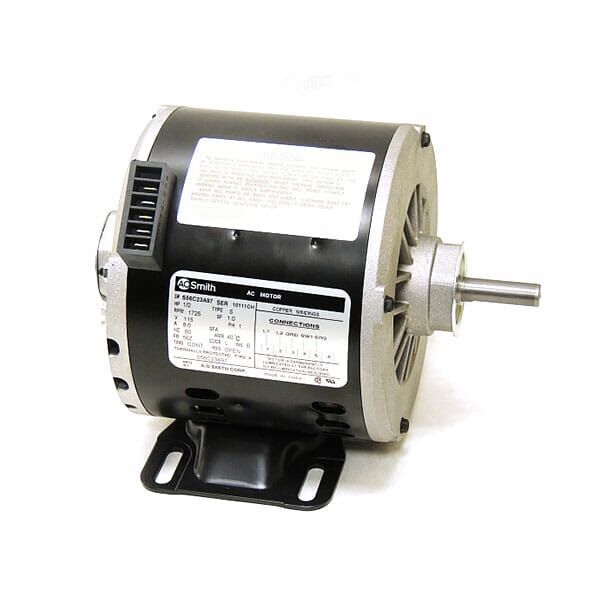

1/2 HP 2 Speed Motor

Product ID : PMTR-SPL4223

$264.00

Out of stock

SKU: PMTR-SPL4223 Categories: , , , , , , , , , , , , , , , ,
Parts and accessories are non-refundable

Description

Replacement Motor for: SPL3623/SPL4223/TPC3623/TPC4223/HBD3623/HBD4223/DBD4223
-1/2 Horsepower
-2 Speed
-115 Volt
-1 Phase
-60 HZ
-56 Z
-1/2″ Diameter x 1 1/2″ Long Shaft
-1725/1140 RPM

This motor replaces: S56C25A97, S56A21A97, 5KH37PNB017AX, S56A61A97, S56A34A97, S56A11A97, 5KH37PNB017X

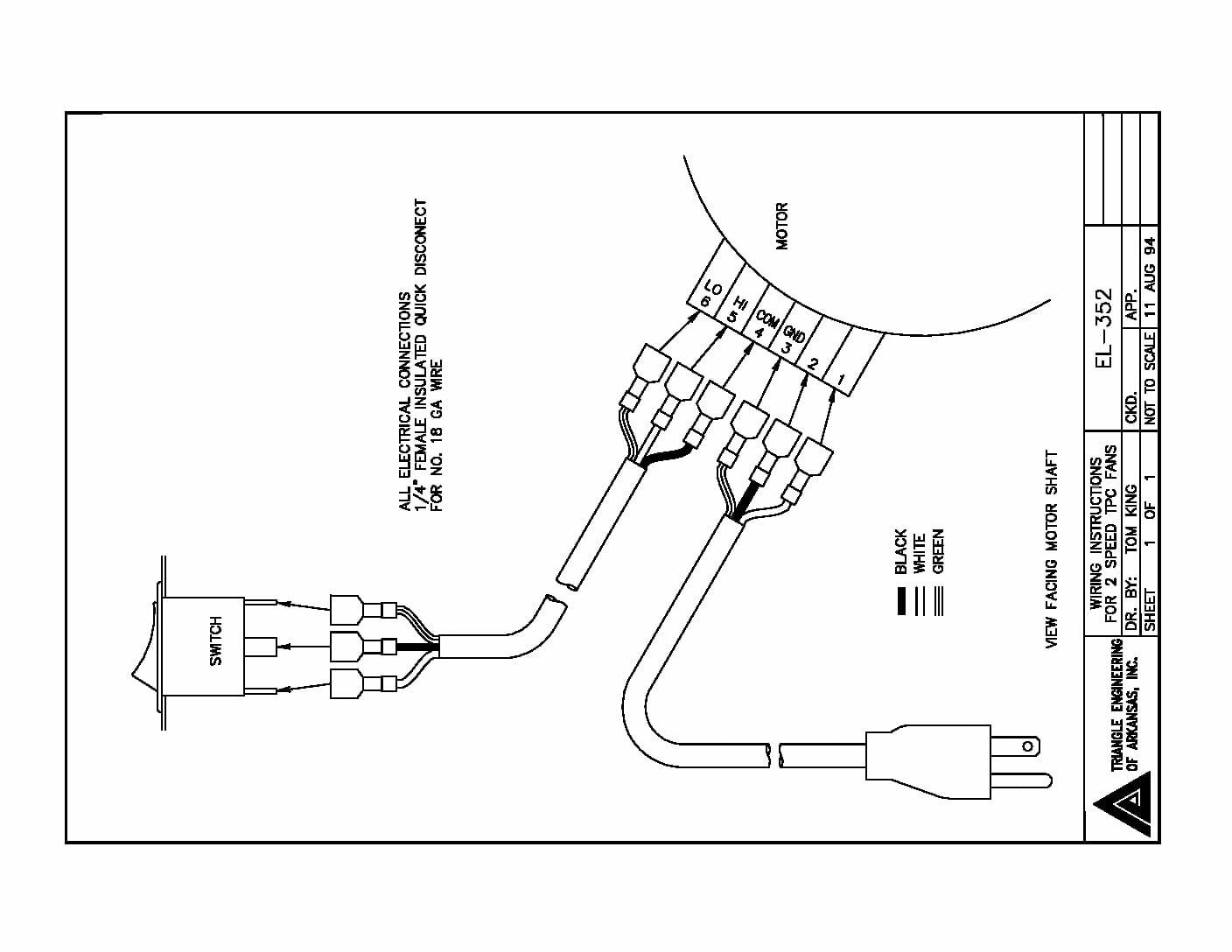

Wiring Diagram

NOTE: To reconnect motor to terminal: Power Cord white lead #1, Power Cord black lead #2, Power Cord green lead #3, Switch Cord black lead #4, Switch Cord white lead #5 Switch Cord green lead #6.

Note: Switch Cord black lead must connect to center spade of switch.

Parts are non-returnable.

Replacement for Fan Model Number(s):
HBD4223 HBD3623 TPC4223 TPC3623 SPL4223 SPL3623
