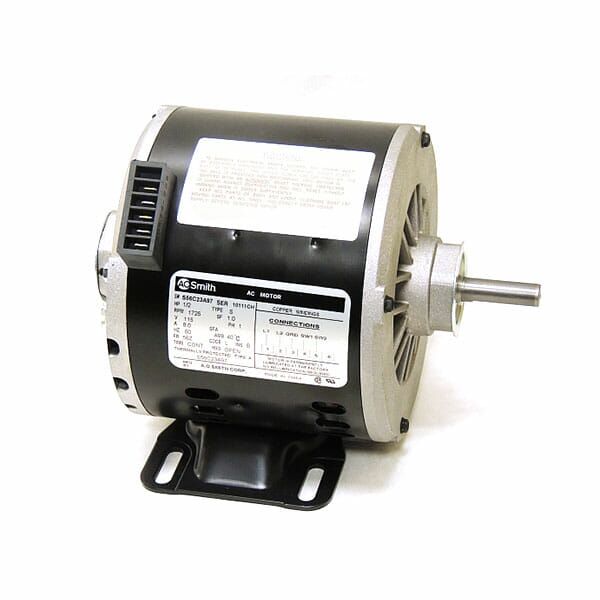

1/2 HP 1 Speed Motor

QUALITYPARTS.
SINCE 1948.

1/2 HP 1 Speed Motor
1/2 HP 1 Speed Motor

1/2 HP 1 Speed Motor

Product ID : PMTR-SPL4213

$245.00

Out of stock

SKU: PMTR-SPL4213 Categories: , , , , , , , , , , , , , , , , , , , , , ,
Parts and accessories are non-refundable

Description

Replacement Motor for QB2 3613/QB2 4213/SPL3613/SPL4213/TPC3613/CMB3613
CMB4213/HBD3613/HBD4213/TPC4213
-1/2 Horsepower
-1 Speed
-115 Volt
-1 Phase
-60 HZ
-56 Z
-1/2″ Diameter x 1 1/2″ Long Shaft
-1725 RPM

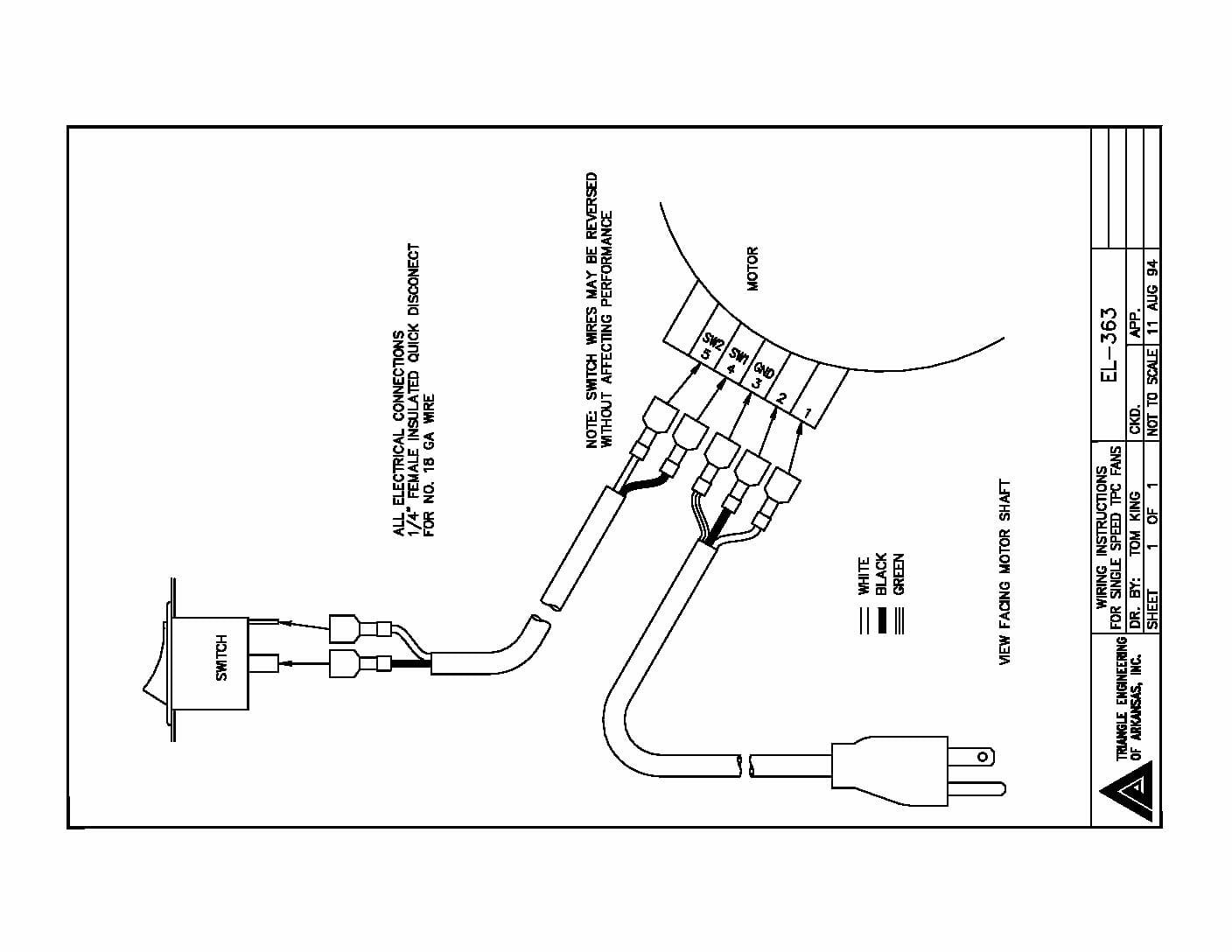

Wiring Diagram

NOTE: To reconnect motor to terminal: Power Cord white lead #1, Power Cord black lead #2, Power Cord green lead #3, Switch Cord black lead #4, Switch Cord white lead #5

This motor replaces: S56C23A97, S56A09A97, S56A03A97, S56A19A97, S56A62A97, S56A33A97, 320P551, 316P760, 5K36JNA769X, 5K36JNA984X, 5KH36JNA984X, S63NXJDC7562, S63NXSMT-7035, YQC56S17D323B, YQE56S17D318E, HG2K012K, HE2H127N, S55NXNFJ-7059, S55NXPKL-7622, 3WH56A1708AP, 4WE56A1709AP, 4WE56AZ1709AP,YQDS56S17D323BP, 26G89525A,3YH56A1708A-P, XQC56S17D318D, YQD56S17D323B, YQD56S17D318E 320P526, S56A72C22, 4WD56A1709AP, 4YD56AZ1709AP, 4VE56A1709AP,XQD56S17D318D, 3VL56A1708A-P, XQE56S17D318D, 056S17D318D, YQD56S17D318D, S55AXNMZ-7208,S63NXJDC-7562,637562

Parts are non-returnable.

Replacement for Fan Model Number(s):
HBD4213 HBD3613 CMB4213 CMB3613 TPC4213 TPC3613 SPL4213 SPL3613
