Before ordering replacement parts, make sure you have the fan model and serial number.
Where can I find instructions to wire a motor on my fan?
The nameplate of the motor includes a wiring diagram. Wiring diagrams can also be found beneath the motor image in our Buy Parts section. Simply click the wiring diagram icon to view it.
Can I install a thermostat?
Yes, but only if the thermostat has a simple on/off operation. Please note: if the thermostat varies the amount of voltage delivered, it will damage the motor and void the warranty.
Can I install my whole house fan vertically?
Comfort Cooler (CC) series whole-house fans may be mounted vertically, however, the AS and CSS shutters will not function properly in the vertical position. We do not carry a ceiling shutter for vertical installation. Vertical installation instructions.

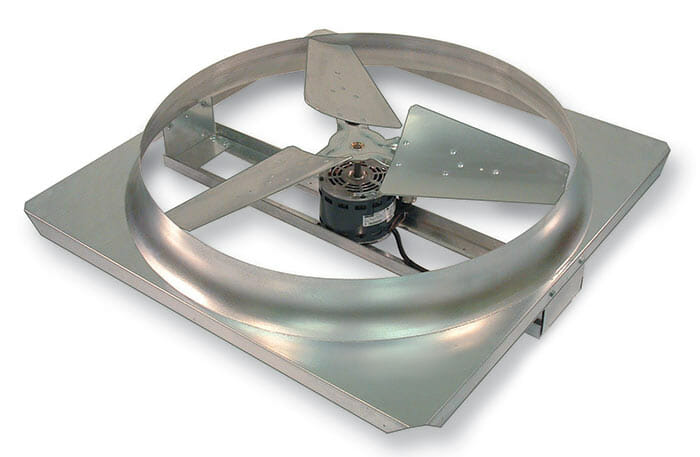

Triangle’s Comfort Aide direct drive whole house fans are an efficient, economical way to cool your home. Our Comfort Aide Fans will cool your home to the outside temperature 5 to 10 times faster than central air conditioning at less than 1/10th the cost!
Details
Two-speed direct drive motor
Two-speed pull chain switch included
Three-wing propeller
Rubber mounts for quieter operation
Heavy gauge steel construction
Easy installation, UL listed
CSS no-cut joist shutter included
Optional two-speed wall switch and 12-hour timer available (each sold separately)
See full specifications for sizing and performance data
Fan Size Calculator
